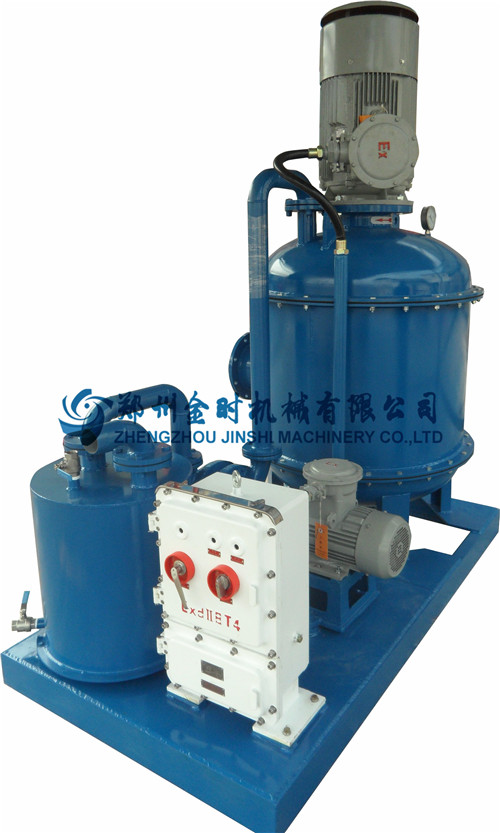

JZCQ-1/4(240) vacuum degasser

Time:2019-05-07


1. Usage and Application Range

JZCQ series Vacuum Degasser is solids control equipment for treatment of gas cut drilling liquid. It can get rid of incursive gas quickly in drilling liquid to recover specific gravity of drilling liquid and stabilize its performance. It is indispensable equipment in exploratory well and drilling in ultradeep well and under-balanced drilling.

2. Product features

i.     Capacity is large,gas removal efficiency is high and deal with gas mud serious and change it normal quickly.

ii.     The vacuum pump is cooled with water loop and suitable for safer evacuation of combustible gas.

iii.    The working condition can be saw from the viewing window,and the working condition can be adjusted by pressure regulating valve,can make sure the degaser works under optimum condition

3. Main technical parameters

Model

JZCQ-1/4(240)

JZCQ360-180

JZCQ-300

Discharge capacity

200~260 m3/h

300~360 m3/h

280~320 m3/h

Vacuum degree

280~400 mmHg

400~550 mmHg

380~500 mmHg

Efficiency

≥95%

≥95%

≥95%

Main motor power

15 kW

22 kW


Vacuum pump motor   power

2.2 kW/3 kW(60Hz)

4 kW/5.5 kW(60Hz)

3 kW/4 kW(60Hz)

Inlet diameter

5″

6″

8″

Outlet diameter

6″

8″

8″

Weight

1850 kg

2500 kg

2800 kg



Overall dimensions

1990×1200×2300mm

2200×1220×2400 mm

2500×1400×2100mm
